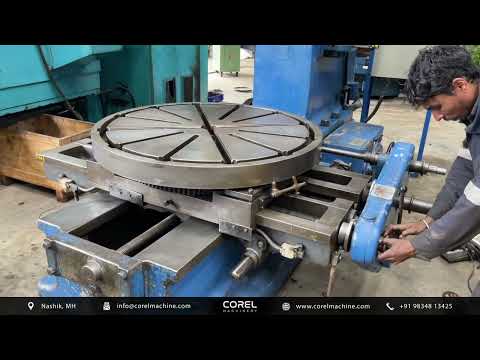

BUTLER 21″ PRODUCTION SLOTTER WITH 45″ ROTARY TABLE

Max Stroke 530mm Min Stroke 190mm Number of Speeds 6 Cycles per minute 9/11/14/18/22/28 Dia. without Extension Toolholder 1830mm Dia. with extension toolholder 2130mm Ram to frame 890mm Ram to frame with extensions toolholder 1040mm Ram to table top 1120mm Ram Adjustment 510mm Table Traverse Across 915mm Table Travers from Ram 840mm Table Dia. 45″/ 1140mm Motor 15hp / 1000rpm Approx. Weight 9449kg Dimensions 3650mm L x 2430mm W x 3960mm H
