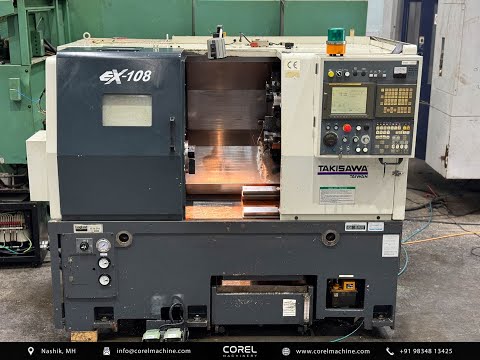

TAKISAWA EX-108 CNC LATHE
Takisawa EX-108
- Category
- CNC Turning Centers
- Capacity
- Ø320 X 476 MM
- Control
- Fanuc
- Year (YOM)
- 1999
1 / 7
Machine Data
Technical Specifications
Max Turning Diameter320 mm
Max Turning Length476 mm
Swing480 mm
Chuck Equipped200 mm
Travels (X / Z)180 / 530 mm
GuidewaysLM
ControlFanuc 21i-T
Max Rotation Speed4000 RPM (TBC)
Spindle NoseA2-6
Spindle Bore76 mm
Spindle Motor Power7.5 / 11 kW
Turret12 Stations
Turning Tool Size25 mm
Boring Bar Shank Dia40 mm
TailstockYes
Quill Stroke100 mm
LWH2240 x 1645 x 1170 mm
Weight4.5T
